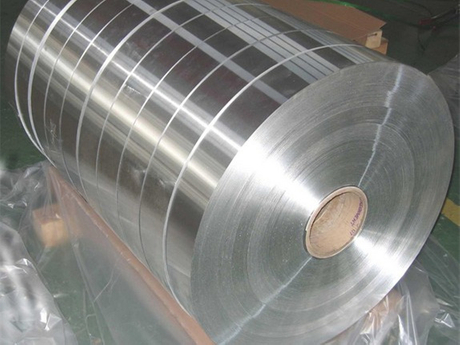

High Quality 16 inch Aluminum Strip alloy 5052 Mg gives this alloy its enhanced corrosion resistance, workability, strength, and weldability. Typical uses include aircraft fuel tanks, electronic mounting plates and panels, fan blades, refrigeration liners, storm shutters, and utensils.
16 inch means 16inch width, width is about 405mm
Weldability and corrosion resistance are considered good. This alloy is often used for body panels because of its good formability. Good corrosion resistance, unless the material is kept at high temperature for a long time.
| Product | High Quality 16 inch Aluminum Strip | Contract No. | Lot No. | |||||||||
| Dimension (mm) | 0.2-4.5 | Alloy | 5052 | Piece Count | ||||||||
| Techuique Standard | GB/T3190--1996/EN | Weight(kg) | ||||||||||
| Chemical Composition(%) | ||||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al | ||
| Standard | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8- | 0.15-0.35 | - | 0.1 | - | 0.15 | Remain | |
| Notice:Aluminum foil not contains Pb、As and other Virose elements | ||||||||||||
| Mechanical Property | ||||||||||||
| Temper | Thickness | Tensile Strength（Mpa） | Strength(Mpa) | Elongation% | Cup Bulge | |||||||
| O | 0.8-1.3 | 175-215 | 65 | 18 | - | |||||||
| 1.31-2.9 | 19 | - | ||||||||||
| 2.91-4.5 | 20 | - | ||||||||||
| H12,H22，H32 | 0.2-0.3 | 215-265 | - | 3 | - | |||||||
| 0.31-0.5 | - | 4 | - | |||||||||
| 0.51-0.8 | - | 5 | - | |||||||||
| 0.81-1.3 | 155 | 5 | - | |||||||||
| 1.31-2.9 | 7 | - | ||||||||||
| 2.91-4.5 | 9 | - | ||||||||||
| H14,H24,H34 | 0.2-0.5 | 235-285 | - | 3 | - | |||||||
| 0.51-0.8 | - | 4 | - | |||||||||
| 0.81-1.3 | 175 | 4 | - | |||||||||
| 1.31-2.9 | 6 | - | ||||||||||
| 2.91-4.5 | 7 | - | ||||||||||
| H16,H26,H36 | 0.2-0.8 | 255-305 | - | 3 | - | |||||||
| 0.81-4.0 | 205 | 4 | - | |||||||||
| H18 | 0.2-0.8 | 275 | - | 3 | - | |||||||
| 0.81-3.0 | 225 | 4 | - | |||||||||
| H19 | 0.2-0.5 | 285 | - | 1 | - | |||||||
Productivity: 1500 tons per month Transportation: Ocean,Land
Place of Origin: China Supply Ability: 1050 tons per month
Certificate: ISO9001 HS Code: 76061199
Payment Type: L/C,T/T In co term: FOB,CFR,CIF,EXW
Applications include Marine parts, aircraft, construction, general sheet metal products, heat exchangers, fuel lines and fuel tanks, floor panels, street lamps, appliances, rivets and wires.
Packing: Strong seaworthy wooden pallet or customized
Loading Port: Shanghai,Ningbo,Xiamen,Qingdao
